Stainless Steel Flange CNC Turned Parts

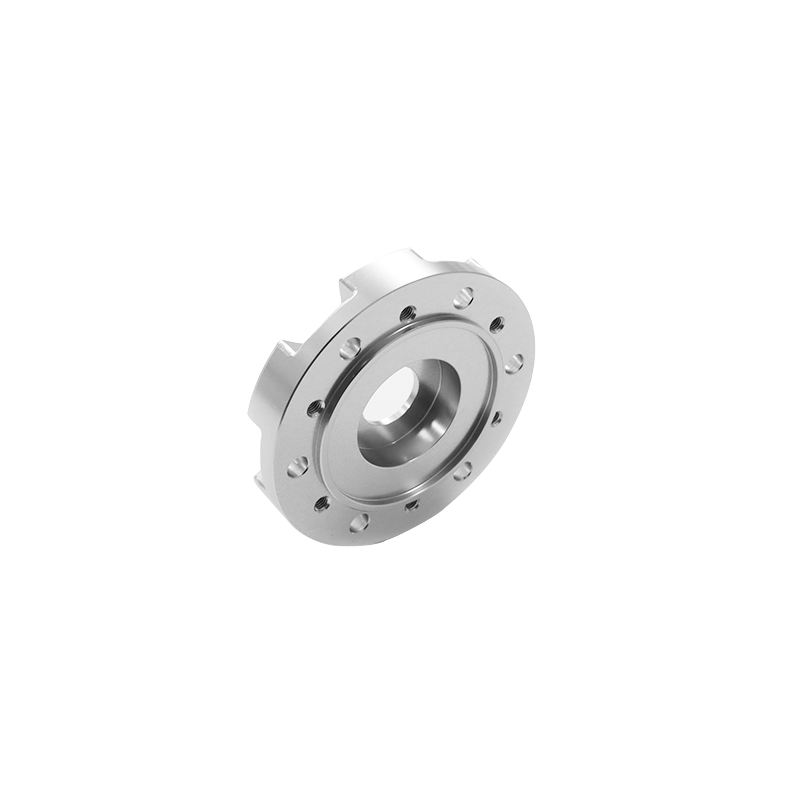

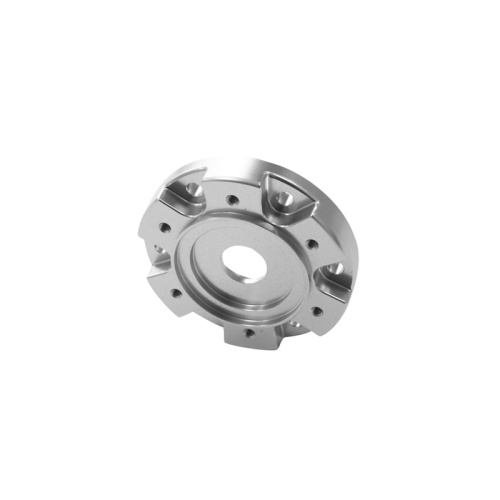

CNC Turning parts are made of 6061 aluminum alloy according to the national standard and have a disc structure as a whole. The center is equipped with a through hole; The central processing has a circular slot, which can be embedded with sealing rings or positioning rings; The edge adopts a segmented convex design with through holes and thread holes evenly distributed.

Step 1: Choose 6061 aluminum alloy rods as raw material and after precision cutting, enter the CNC turning process. Full and fine rotation in the center of rotation, very precise machining of the outer circle, end surface and central blade hole, and control of uniformity and coaxiality tolerances within ± 0.005mm, which provides a stable and reliable benchmark for subsequent milling.

Step 2: After turning is completed, the workpiece undergoes milling directly on the turning-milling machining center. High-speed milling cutters precisely machine peripheral weight-reduction slots and positioning mounting holes, ensuring angular deviations for all slots and holes are controlled within ±0.02°. By completing multiple processes in a single setup, cumulative errors from repeated repositioning are effectively avoided.At the same time, the high-pressure cooling system is fully integrated to ensure great smoothness of the 6061 aluminum alloy cutting surface.

Step 3: Apply natural anodizing to the components. First, the treatment residues are carefully removed by chemical degreasing and acid washing, after which a dense film of alumina 8-12 μm thick is formed in the sulfuric acid electrolyte.

As a professional manufacturer of CNC Turning Services, we support flexible customization  -whether it is size adjustment, material exchange (e.g. 7075 aluminum alloy, stainless steel, titanium alloy, etc.) or the choice of various surface treatment processes (e.g. hard anodizing, sand beams, electrophoresis, etc.), everything can be done as needed. We offer a complete solution for precision machining, from design assistance to final product delivery for a variety of industrial application scenarios.
