Product Description

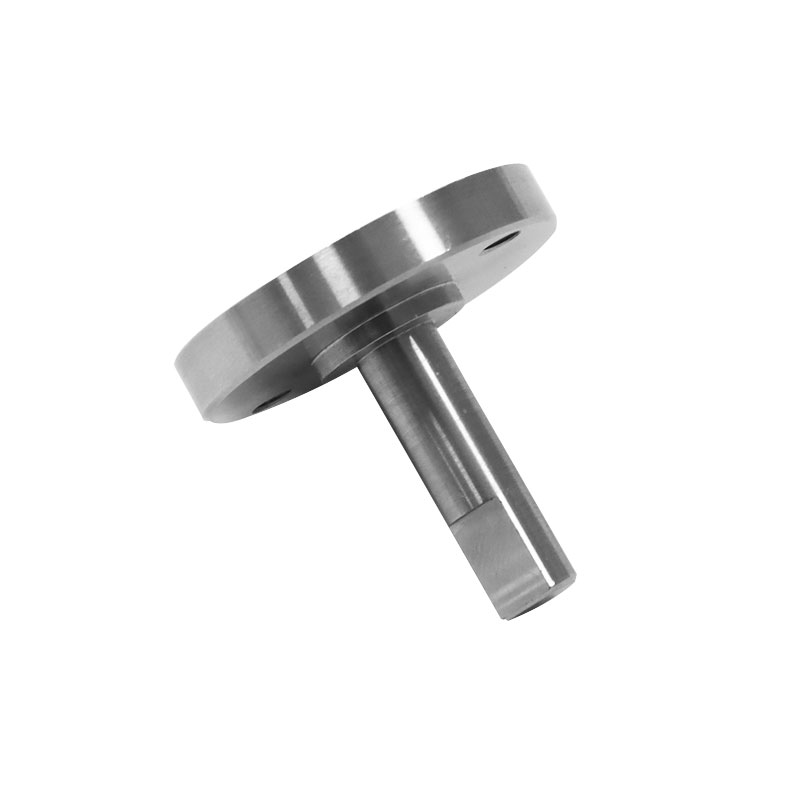

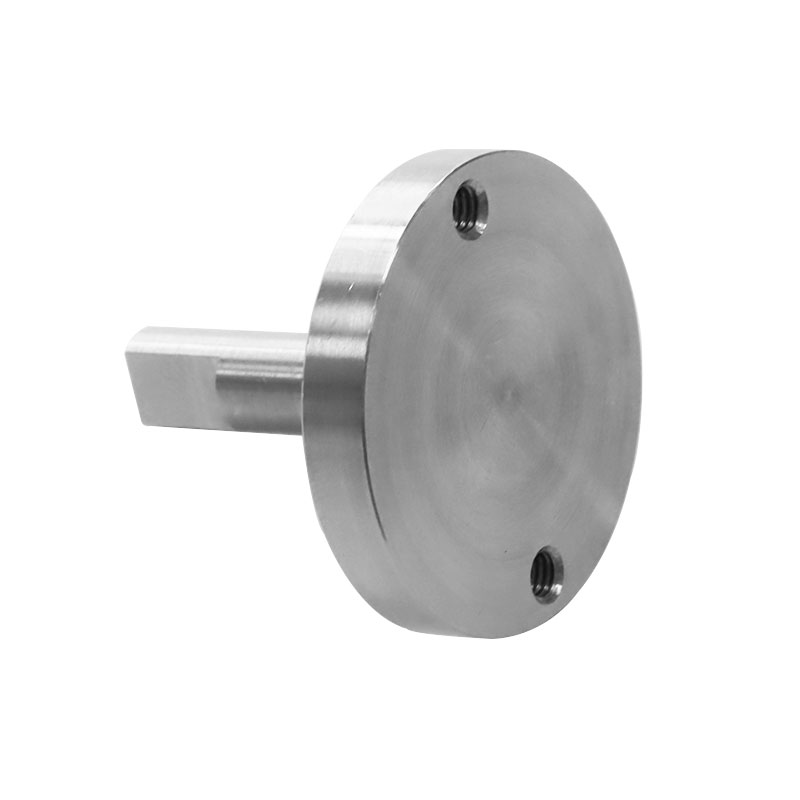

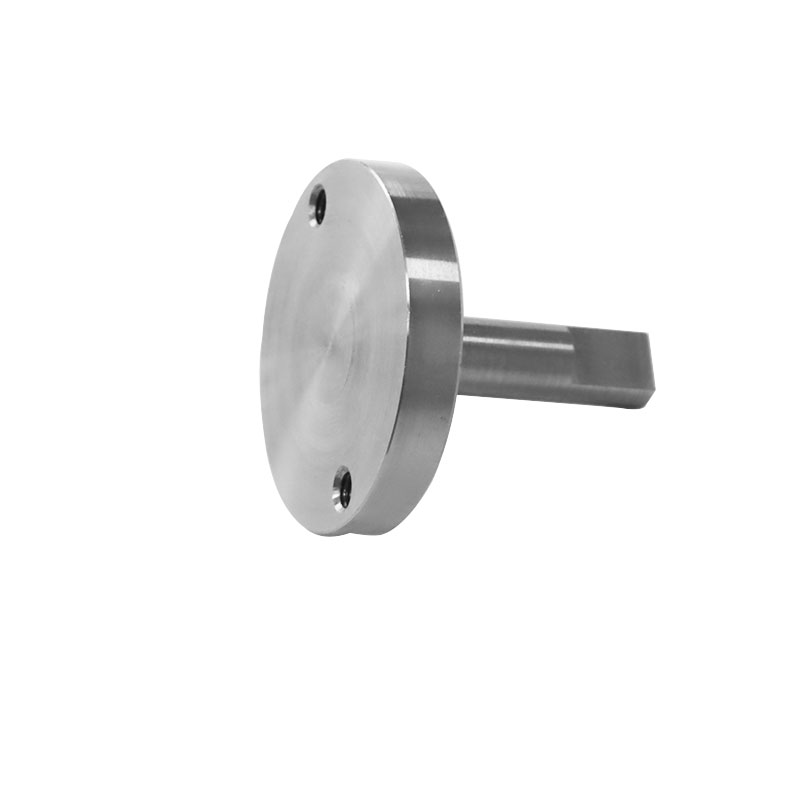

This product is made of 42CrMo high carbon steel, which is CNC processed into a high precision integrated flange blade. The structure consists of a circular flange with double passage orifices and an enlarged flat wave: the flange is used to fix the bolts, to obtain accurate positioning, while the flat wave effectively prevents turning and reliably transmits the circular moment through an incorrect cross section.

Step 1: After precisely clamping and positioning the raw material bar stock, initiate the rough turning process on the CNC lathe. Equipment with high speed and efficient feeding quickly eliminates much of the processing eligibility and pre-forms the contour of the flange disk and the progressive structure of the waveboard and lays the foundation for further precise processing.

Step 2: We then switch to Precision CNC Turning Services mode and use precise tools and optimized cutting parameters for precise turning. The surface plane of the flange shall be adjusted within a limit of 0.02 mm to ensure full compliance of the steam surface; The shaft part strictly controls cylindricity and coaxiality to ensure uniformity and dynamic precision of rotation.

Step 3: Once the lathe is completed, we use the appropriate drilling process to precisely process the positioning and mounting holes on the flange. The positioning error of the holes is adjustable to 0.03 mm, which ensures a stable connection with the connection for mounting the equipment.

Step 4: After the training, the detail passes to the surface treatment step. Fine polishing is first applied to remove the remaining traces of cutting, then a mirror polishing is performed to obtain a surface lightness Ra0.4 or less.

As a professional manufacturer of CNC services, we offer comprehensive individual services, whether it is dimension adjustment, material exchange or modifications in surface treatment processes, all of which can be carried out as needed. Our Turning Services can meet your individual needs in different industrial scenarios and offer you a unique solution from design to delivery.
