Custom T-slot slider CNC Milled Parts

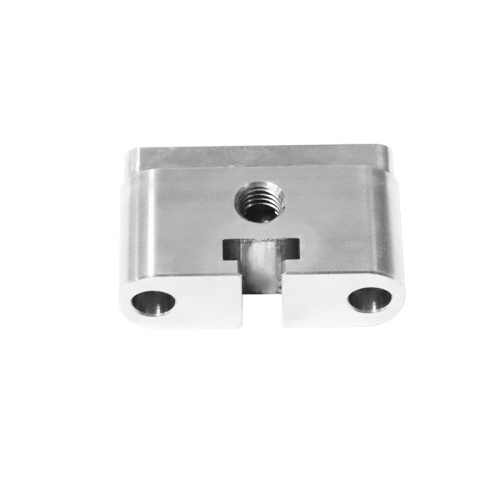

The CNC Milling part is made of 42CrMo mold steel and is an integrated precision metal fixture with a rectangular structure as a whole. The upper part is designed with alternative through openings and screw openings, with a vertical screw opening in the middle of the front. The background is processed with the help of a symmetrical U-shaped gap, to easily insert into the guide rail or base and support quick installation and reliable ignition.

Step 1: In the processing stage, we first use 42CrMo steel sheets as raw material. After the precise cutting and cutting of the billet, it goes into the process of high-precision milling with CNC: on three or five axes of the machining center, the surpluses are first removed by rough machining with a surface milling machine, and then the precise milling is carried out, to ensure that the parallelism and perpendicularity of each plane are controlled to ± 0.008 mm.

Step 2: Use drilling technology for continuous machining of the upper through hole, screw hole and screw hole of the side plant; The lower gap is formed by the side milling cutter, which strictly controls the width and depth of the gap. Our Precision Milling Service uses a high pressure cooling system throughout the process, to avoid hardening and deformation of 42CrMo by high temperatures during processing.

Step 3: First remove the surface oxide and the traces of sand processing to increase the coating plant, and then perform electrostatic spraying, to form a uniform film of the rust paint.

As a professional manufacturer of precision milling services, we offer a complete range of personalized services, be it the regulation of sizes, the exchange of materials or surface treatment processes, all of which can be carried out on request. Our metal manufacturing service can meet your individual requirements in various scenarios such as mould manufacturing, Accessories and automation systems fulfill and offer you a unique solution from design to delivery.
