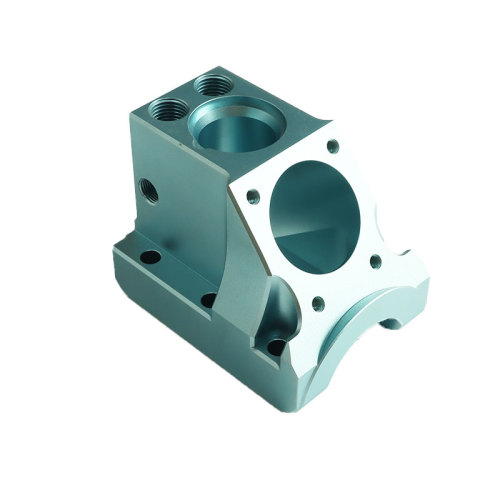

6061 Aluminum Alloy Cylinder Base Milling Part

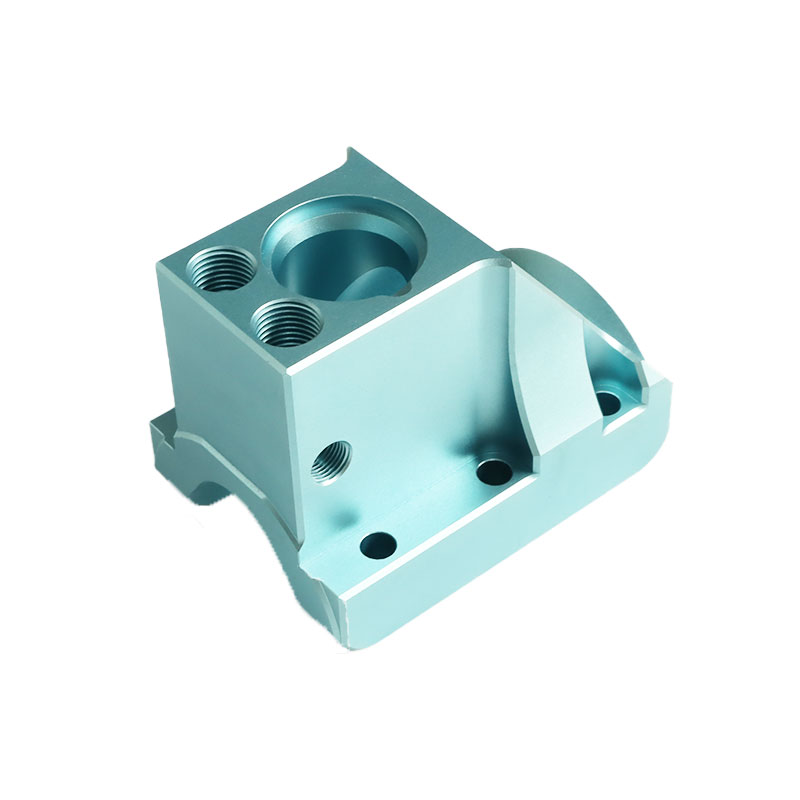

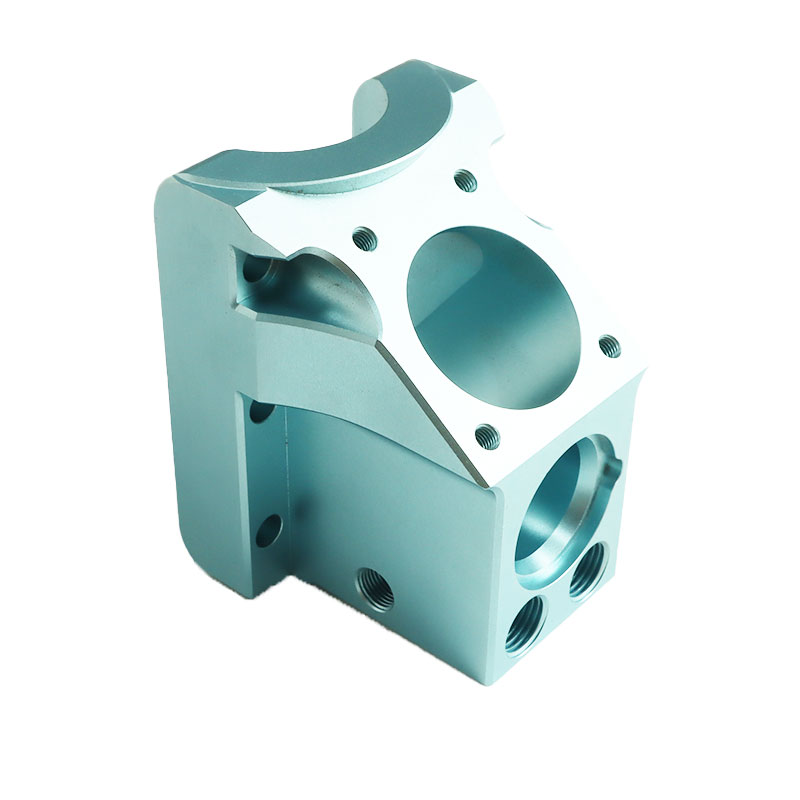

It is a precision mounting surface made of aluminum 6061, which is milled in a single part and has a light green anodized surface. The general construction is a stepped block shape with oblique support inclinations. The upper central openings can be used to mount components of an axis or a column, the side openings for auxiliary blocking and the side openings are suitable for the pipe or sensor interfaces. The base expanded by the lower opening and the positioning of the channel can achieve stable fastening with the base of the equipment, and the arc-shaped spacing is used to avoid components or the storage space of the wire

Step 1: From raw material to finished products, start 5-axis milling technology with CNC. The five-axis connection system allows for simultaneous tightening and forming of complex surfaces and irregular structures and avoids errors caused by multiple positioning.

Step 2: After the Rapid elimination of excess during the rough milling phase, the position of the holes and opposite surfaces are finely polished at the level of micrometers to assistance a high precision milling machine assistance a digitally controlled machine for ensure that the shape and position tolerances of each structure are set to 0.02 mm.

Step 3: After finishing the milling, the components are subjected to a light green anodized treatment that not only improves the corrosion resistance of 6061 aluminum, but also gives the surface a soft touch and visual perception.

Dongguan Shengpeng Precision Technology Co., Ltd., as a professional supplier of CNC processing services, Precision Milling Service,offers complete solutions of high precision milling machines. We support flexible dimensional adaptation, choice of materials and surface treatment processes, and efficient customer needs throughout the entire cycle, from prototype validation to mass production.
