In the custom manufacturing of enclosures for automated equipment, industrial control equipment, and instruments, Sheet Metal Bending is a core process that determines the assembly accuracy, appearance gaps, and alignment of mounting holes for the entire unit. Sheet metal bending is a plastic forming process; multiple bending operations can easily lead to cumulative errors. If process control is inadequate, defects such as angle deviations, uneven frame lengths, out-of-tolerance diagonals, and misaligned mounting holes are likely to occur. Relying on its professional Precision Sheet Metal Bending process and mature Sheet Metal Forming system, Shengpeng Precision has developed a comprehensive set of standardized tolerance control solutions for cold-rolled steel sheets, aluminum sheets, and custom stainless steel chassis enclosures. By integrating high-Precision Laser Cutting for pre-processing and precision welding processes, we resolve bending accuracy issues at the source and ensure dimensional consistency in mass-produced sheet metal chassis enclosures. 一、Sources of Core Tolerance Deviations in Sheet Metal Bending
The vast majority of cases where enclosure tolerances are exceeded are not due to errors in a single process step, but rather result from cumulative deviations across multiple processes. Conventional tolerance for a single bending operation is ±0.5° to ±1° for angle and ±0.1 mm to ±0.3 mm for dimensions. After a standard enclosure undergoes 4 to 8 bending operations, the cumulative deviation can easily exceed 1 mm, resulting in excessive gaps in the frame joints, misalignment of door locks, and assembly interference with internal sheet metal brackets. At the same time, springback varies significantly among different materials: stainless steel exhibits 3°–5° of springback, while aluminum sheet shows 1°–3°. Failure to apply targeted compensation will directly result in non-perpendicular angles and housing deformation.
二、Core Techniques for High-Precision Bending Tolerance Control
1. Precise Bending Coefficient and Springback Compensation Settings
For different materials—such as SPCC cold-rolled sheet, 5052 aluminum sheet, and 304 stainless steel—and varying sheet thicknesses, specific bending K-factors and springback compensation parameters are matched. A reverse pre-bend is applied in advance to offset the material’s elastic springback, ensuring that the angle after bending is strictly controlled within 90° ± 0.3° and eliminating housing tilting and corner misalignment.
2. Closed-Loop Servo Positioning to Control Dimensional Errors
CNC servo bending equipment is used to maintain rear stop positioning accuracy within ±0.1 mm. Closed-loop feedback via a linear encoder throughout the process prevents repeat positioning deviations. For long-length chassis frames, segmented bending is performed using a unified reference, eliminating dimensional deviations between the start and end points and ensuring consistent frame lengths.
3. Process Mitigation for Hole Positions and Bending Distances
Strict adherence to sheet metal processing specifications ensures that mounting holes and fastening holes are located at least 3 times the sheet thickness away from the bend edge, preventing hole stretching, deformation, and diameter deviation caused by bending compression. Mounting reference points near the bending area are pre-shifted to ensure stable assembly reference points.
4. Segmented Bending + Shaping Correction to Control Cumulative Tolerances
For complex enclosures with multiple bends, a segmented symmetrical bending process is employed. Dimensions and diagonals are rechecked after every two bends, and parameters are fine-tuned promptly to prevent the cumulative buildup of errors. During mass production, the first unit undergoes full-dimension verification; mass production begins only after process parameters are locked in, ensuring consistent tolerances across the batch.
5. Welding Deformation Prevention and Control
For chassis frame assembly welding, spot welding is used for positioning, followed by a segmented cooling welding process to minimize local high-temperature thermal deformation. After welding is complete, the entire structure undergoes straightening and correction to ensure the chassis’ squareness and diagonal tolerances are controlled within ±0.5 mm.

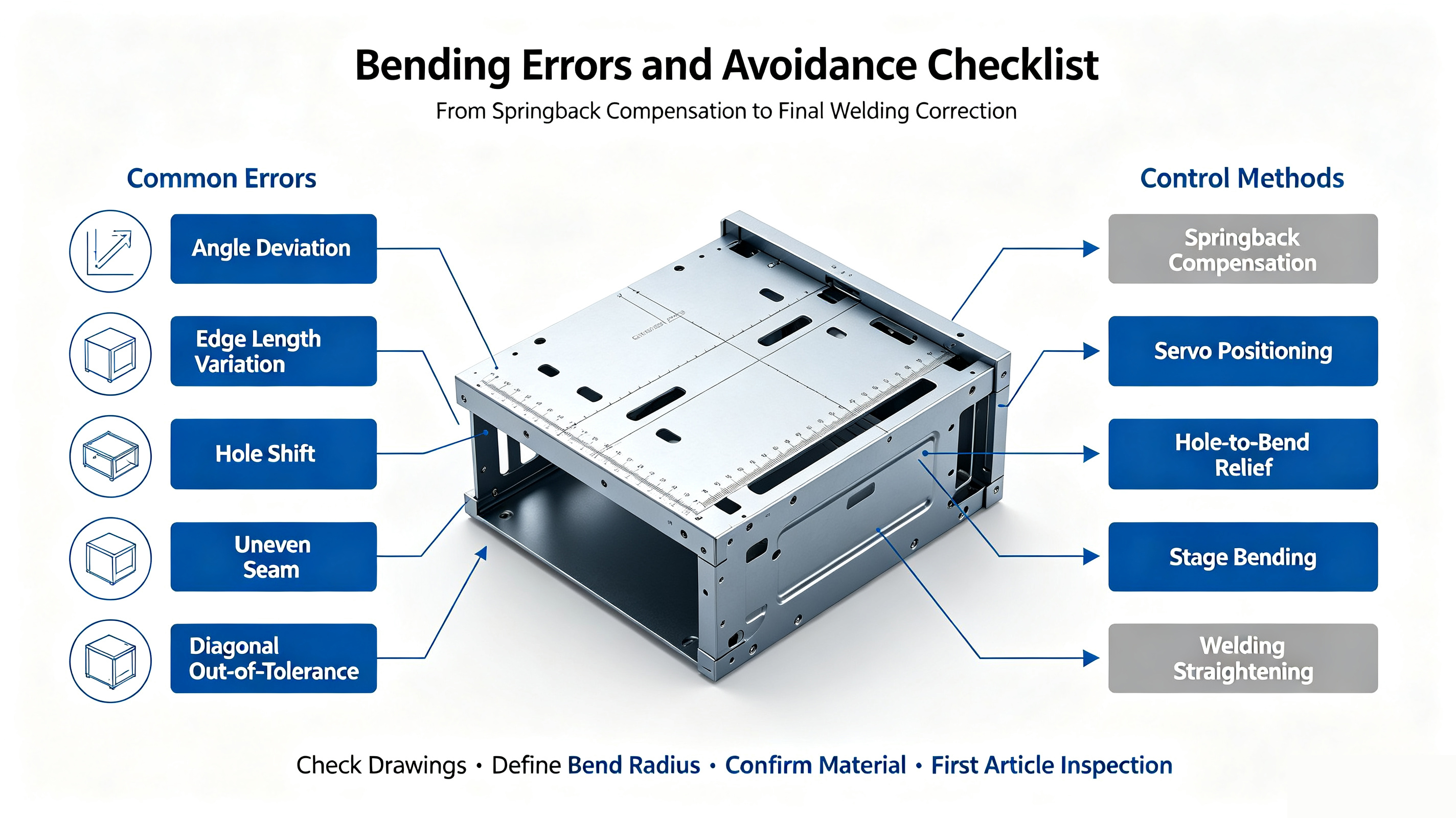

三、Key Pitfalls to Avoid in Custom Chassis OEM High-Frequency Manufacturing
1. Drawings that specify only external dimensions without indicating the inner radius of bends or tolerance ranges can easily lead to inconsistent processing standards and uneven gaps in the appearance of mass-produced parts;
2. Ignoring differences in material springback—using the same bending parameters for both aluminum sheets and stainless steel—can result in poor angles and chassis deformation in large batches;
3. Hole positions are too close to bend lines without process clearance, resulting in hole misalignment after bending and preventing screw assembly;
4. Cumulative tolerances are not controlled in multi-bend structures, leading to individual dimensions meeting specifications but the overall assembly exceeding tolerances;
5. No reshaping or correction is performed after welding, resulting in significant diagonal deviations in the enclosure, uneven door gaps, and sticking during opening and closing.
四、Advantages of Precision Sheet Metal OEM Customization Services
Shengpeng Precision specializes in OEM customization of industrial control enclosures, equipment housings, and instrument sheet metal structural components. We provide end-to-end process control—from DFM optimization of drawings, precision Laser Cutting, and precision bending to welding, straightening, and surface treatment—strictly controlling bending tolerances and overall assembly accuracy. We support both small-batch prototyping and stable mass production, effectively avoiding common issues in sheet metal customization and delivering high-precision, highly consistent finished products.
