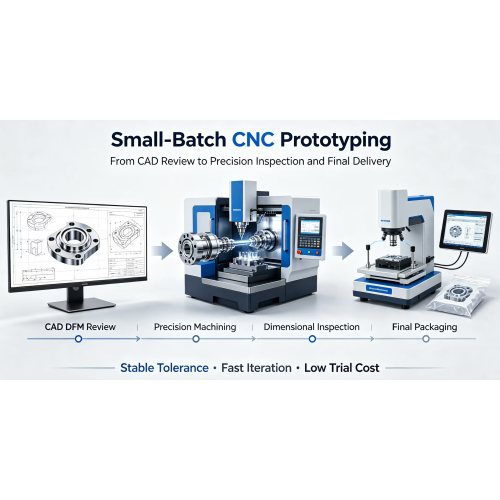

In industrial new product R&D, equipment modification, and structural iteration scenarios, small-batch CNC prototyping is a core step in verifying product structure, assembly accuracy, and process feasibility. Standardized prototyping processes effectively avoid problems such as drawing defects, machining deformation, dimensional deviations, and appearance flaws, significantly reducing the risk of scrapping new products during mass production. Shengpeng Precision possesses a mature non-standard precision customization system, relying on professional
High Precision CNC Milling and
Precision CNC Turning Services to quickly complete the prototyping production of various irregularly shaped, high-precision structural parts. For complex structure R&D verification, we offer a 3D Printing Service for rapid prototyping, verifying assembly logic in advance. Combined with
Aluminum Die Casting pre-forming technology, this lays a mature process foundation for subsequent mass production.
一、CAD Drawing Review and DFM Process Assessment
After the customer provides drawings in STEP, IGS, CAD, and other formats, the engineering team conducts a DFM process review immediately. Key parameters such as dimensional tolerances, geometric tolerances, chamfers, wall thickness, hole fits, and surface treatment allowances are carefully checked. Difficult-to-machine structures, easily deformable locations, and unreasonable tolerance designs are highlighted, and optimization solutions are provided simultaneously. For issues such as design interference, structural weaknesses, and infeasibility of processes in R&D drawings, we provide free assistance to clients in optimizing structures, improving processing feasibility and yield without altering product functionality.
二、Material Selection and Production Process Planning
Based on the client's operating conditions, wear and corrosion resistance requirements, and assembly precision standards, suitable raw materials such as aluminum alloy, stainless steel, copper, and engineering plastics are selected. Machining processes are differentiated based on the part's structural characteristics: irregular cavities, multi-hole structures, and inclined structures are milled; shafts, sleeves, and threaded rotary structures are precision turned; and complex composite structures utilize a combined milling and turning process. Simultaneously, based on the sample's intended use, subsequent surface treatments such as anodizing, sandblasting, polishing, and electroplating are planned in advance, with precise machining allowances to avoid exceeding dimensional standards after finishing.
三、Raw Material Preparation and Custom Tooling
After process confirmation, precision material preparation begins. Raw materials undergo leveling, deburring, and aging stress relief pretreatment to eliminate internal material stress and prevent springback deformation after finishing. For high-precision, thin-walled, and irregularly shaped special samples, customized precision tooling and positioning fixtures are used to ensure stable clamping and accurate positioning, avoiding precision errors caused by clamping deviations from the source and meeting the consistency standards of small batch samples.
四、Precision CNC Finishing
A three-stage process of roughing, semi-finishing, and finishing is employed, removing excess material layer by layer and gradually releasing cutting stress. Roughing provides rapid forming and leaves a precise finishing allowance; semi-finishing corrects the accuracy of the datum surface; and final finishing uses low feed and micro-depth of cut parameters, combined with high-precision tools, to achieve micron-level precision machining, ensuring that the dimensions and geometric tolerances of various
CNC Milling parts and rotary
CNC Turned Parts meet the standards, and that the surface finish is uniform and delicate.
五、Precision Sample Inspection and Dimensional Verification
After finishing, a full-dimensional inspection is conducted using professional equipment such as a coordinate measuring machine, a 2D measuring instrument, a high-precision micrometer, plug gauges, and thread gauges. This rigorously verifies the tolerances on the drawings, flatness, perpendicularity, hole position accuracy, and surface finish. Inspection data is recorded and a quality inspection report is generated to prevent defective samples from leaving the factory, ensuring the accuracy and compliance of every sample.
六、Surface Treatment and Final Inspection and Delivery
Custom surface treatments such as anodizing, sandblasting, wire drawing, polishing, passivation, and electroplating are completed according to customer requirements. After processing, dimensions and appearance are re-inspected to ensure there are no scratches, deformations, color differences, or defects. The samples are then packaged in dustproof and moisture-proof, and shockproof protective packaging, completing the final sample delivery. The entire process can seamlessly connect to subsequent mass production.
七、Core Advantages and Pitfalls of Small-Batch CNC Prototyping
The standardized prototyping process enables rapid iteration, low trial-and-error costs, and high-precision replication, making it suitable for new product development, structural verification, prototype exhibitions, and small-batch equipment production. The most common problems during the prototyping stage are insufficient tolerance allowance, thin-walled stress deformation, lack of surface treatment allowance, and misunderstanding of drawings. Professional manufacturers' process prediction and detail control can effectively avoid various prototyping problems and shorten the new product development cycle.
