Turning and Milling: Differences, Similarities, and Complementary Aspects

一、Core Similarities Between Turning and Milling

Both processes remove material through relative motion between the cutting tool and workpiece to produce parts meeting specifications. As fundamental machining techniques in mechanical manufacturing, they are widely applied in automotive, aerospace, and medical device industries, capable of processing common metals such as steel, aluminum, and copper.

1、Consistent CNC Development Trends

With the advancement of smart manufacturing, both CNC Turning and CNC Milling rely on numerical control systems to achieve automation and precise control. By programming parameters, they reduce manual intervention and enhance batch consistency. This is also the key to how Precision CNC Turning Services and High Precision CNC Milling meet high-end manufacturing demands.

2、Complementary Service Foundations

Both processes center on “on-demand machining,” often supporting different components of the same product (e.g., shaft parts rely on turning, while housing parts depend on milling). Both also share common process considerations like tool selection and cutting fluid usage.

二、Key Differences Between Turning and Milling

1、Processing Principle: Fundamental Difference in Motion

Turning employs workpiece rotation as the primary motion, with the tool performing feed movement to continuously cut the rotating workpiece, forming rotational features like cylinders and cones.

Milling utilizes tool rotation as the primary motion, with the workpiece undergoing feed movement. Through intermittent cutting by a rotating milling cutter, it can process flat surfaces, curved surfaces, and complex cavities.

2、Processing Targets: Clear Demarcation by Geometric Features

Turning is exclusively suited for rotationally symmetric components like shafts, sleeves, and discs. Non-rotational structures require complementary processes.

Milling operates without symmetry constraints, machining arbitrarily complex contours such as mold cavities, housings, and irregular brackets.

3、Precision and Efficiency: Differing Application Scenarios

Turning excels in rotational precision control, achieving high tolerances of ±0.001mm, making it suitable for parts requiring high concentricity.

Milling demonstrates superior contour accuracy; multi-axis interpolation can control surface contour errors within ±0.005mm.

Turning offers continuous, rapid feed rates, typically achieving higher efficiency than milling. For instance, machining a single φ50mm steel shaft can be completed within 1-2 minutes.

Milling involves intermittent cutting, frequent tool changes, and angle adjustments, resulting in relatively lower efficiency. However, high-speed milling enhances batch processing efficiency.

4、Equipment Structure: Differences in Core Components

The lathe's core consists of the spindle head and tool holder. CNC lathes can be equipped with automatic feeders to enable continuous batch processing.

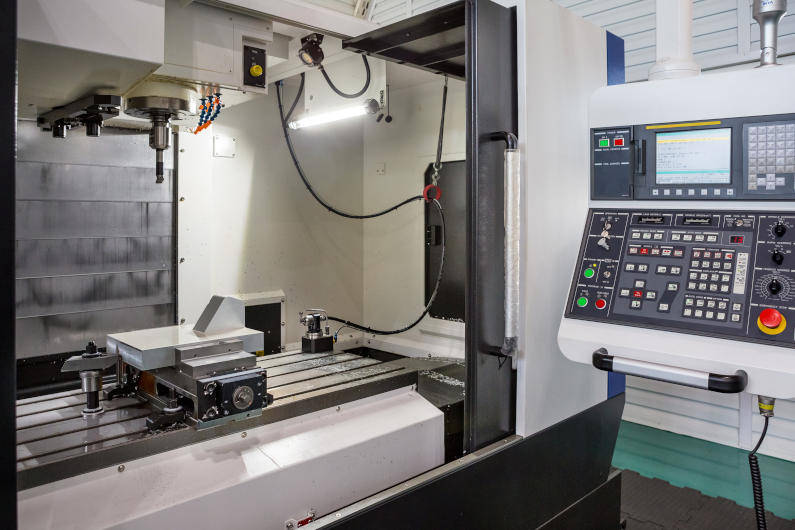

The milling machine's core comprises the milling head and worktable. 5-Axis CNC Milling equipment achieves multi-angle machining through multiple rotary axes.

5、Application Scenarios: Industry-Specific Focus

Turning is primarily used in fields requiring high volumes of rotary components, such as automotive engine shafts, hydraulic piston rods, and precision instrument shaft parts.

Milling is more commonly employed for complex structural components, including mold cavities, aerospace frames, and irregularly shaped medical device parts.

三、Conclusion: Complementary Rather Than Opposing Machining Processes

Turning and milling are complementary partners in manufacturing—Turning Services excel as the preferred choice for rotating components through efficient, high-precision rotary machining; Precision Milling Services meet non-rotating component demands with flexible contour machining capabilities. In actual production, most complex products require collaborative use of both (e.g., turning rotating sections followed by milling keyways), jointly supporting high-end manufacturing's demands for precision and efficiency.
